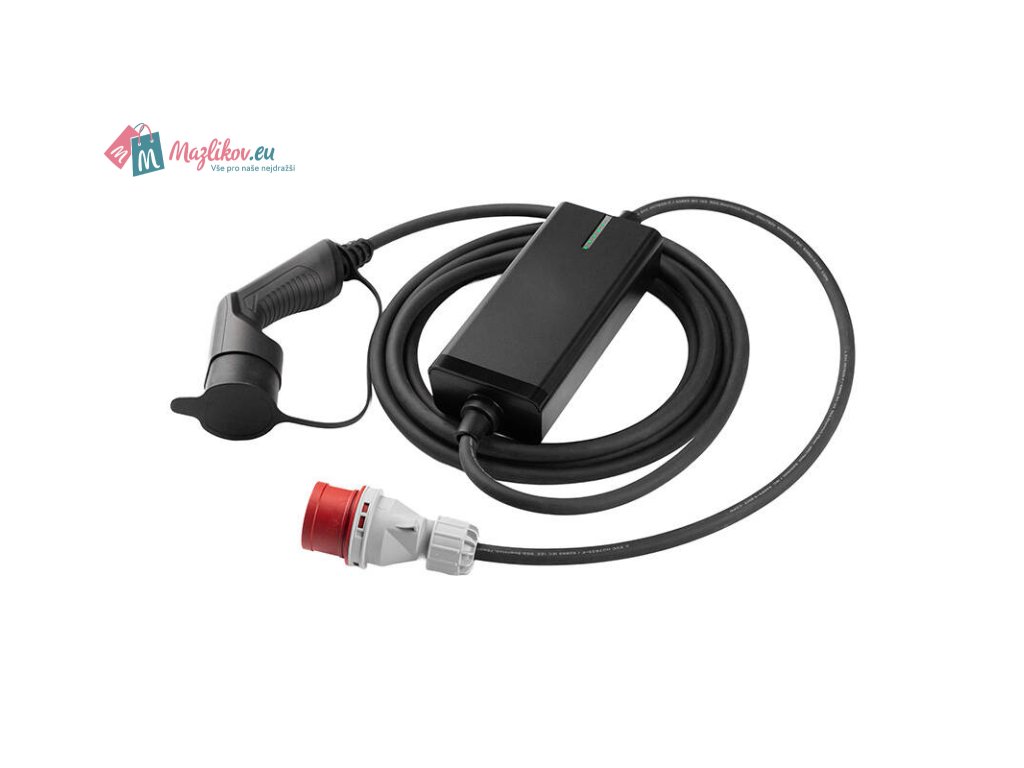

Besen BN60 portable charger for electric cars
The Besen BN60 is a three-phase charger for electric cars that provides an output power of 11 kW. As a result, it provides fast and efficient charging. What's more, it's compatible with various vehicles, and the five-wire system guarantees safe use. In turn, the IP66 water-resistant design allows the device to operate reliably in a variety of weather conditions.
Performance and compatibility with various charging standards
The BN60 is equipped with an IEC 62196-2 and GB/T type connector, making it compatible with most electric cars on the market. The charger supports three-phase connection to the EEC terminal, which enables stable and efficient power transfer. With an output power of 11 kW, the device shortens the vehicle charging process, saving you time.
Advanced protection
The Besen BN60 offers a comprehensive set of electrical protections, including overload, short circuit and overheating protection. The A+6mA DC RCD type provides additional protection against electrical shock, increasing user and vehicle safety during the charging process. With an IP66 rating, the charger is resistant to dust and water, making it ideal for outdoor installations.

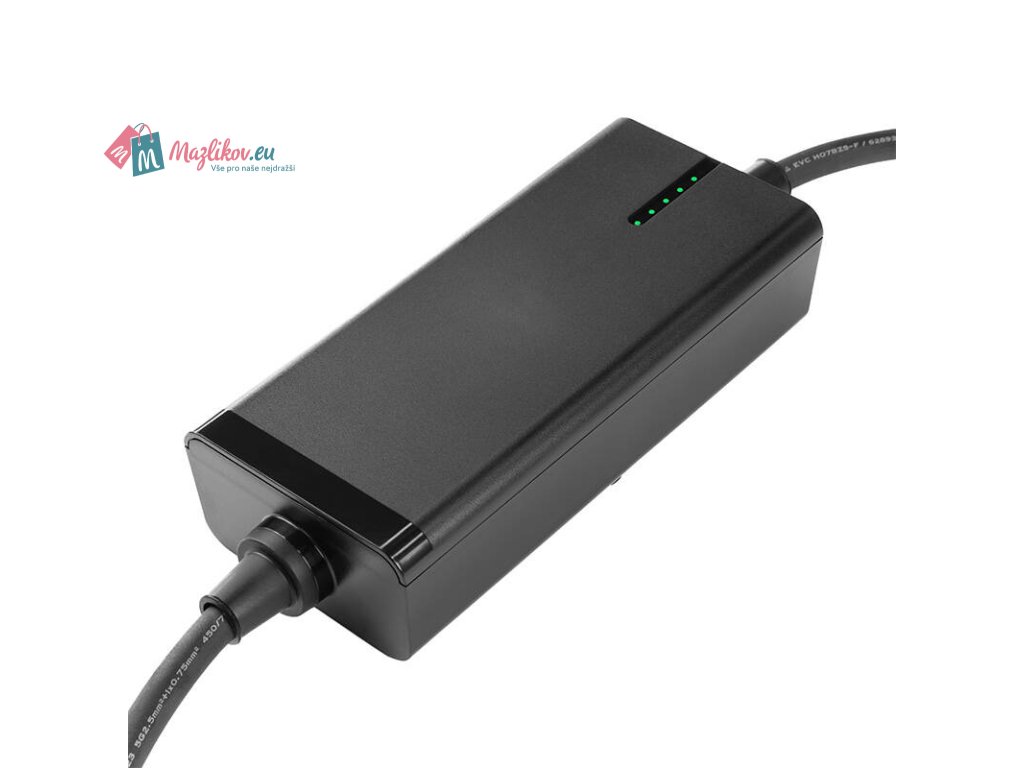

Easy operation and LED indicators
The BN60 is equipped with LED indicators that provide information on the charging status, making it easy to monitor the process. The charger is intuitive to use and requires no additional configuration. The device has been certified according to CE standards, which confirms its high quality and compliance with European safety standards.
Robust design and weather resistance
The Besen BN60 is designed for long-term operation in various environmental conditions. The operating temperature range of -25°C to 55°C allows for trouble-free operation in a variety of conditions. The robust housing provides resistance to mechanical damage and weather resistance, resulting in longer life and reliability of the device.
| Manufacturer | Besen |
|---|---|
| Model | BN60 |
| Input voltage / output voltage | AC 400V |
| Input frequency | 47 ~ 63 Hz |
| Output power | 11 kW |
| Max. output current | 16A, 3 phase |
| Terminal connection | EWG |
| Connector type | IEC 62196-2, GB/T |
| Degree of protection | IP66 |
| Protection | Under-voltage protection / over-load protection / short-circuit protection / overheat protection / lightning protection |
| RCD | Type A+6mA DC |
| Ambient temperature | -25°C ~ 55°C |
| Ambient humidity | 5% - 95% |
| Maximum altitude | <2000 m |
| Power consumption in standby mode | <8 W |
| Certifications | CE |
| Ethernet/WIFI/4G/Bluetooth | No |
| LED indicator | Yes |
| LCD display | No |
| LCD touch screen | No |
| Time setting | No |
| Time delay setting | No |
| Dimensions | 235 × 100 × 60 mm |
| Weight | 4 kg |
| Manuál ke stažení | https://files.innpro.pl/Besen/5906168438752 |
