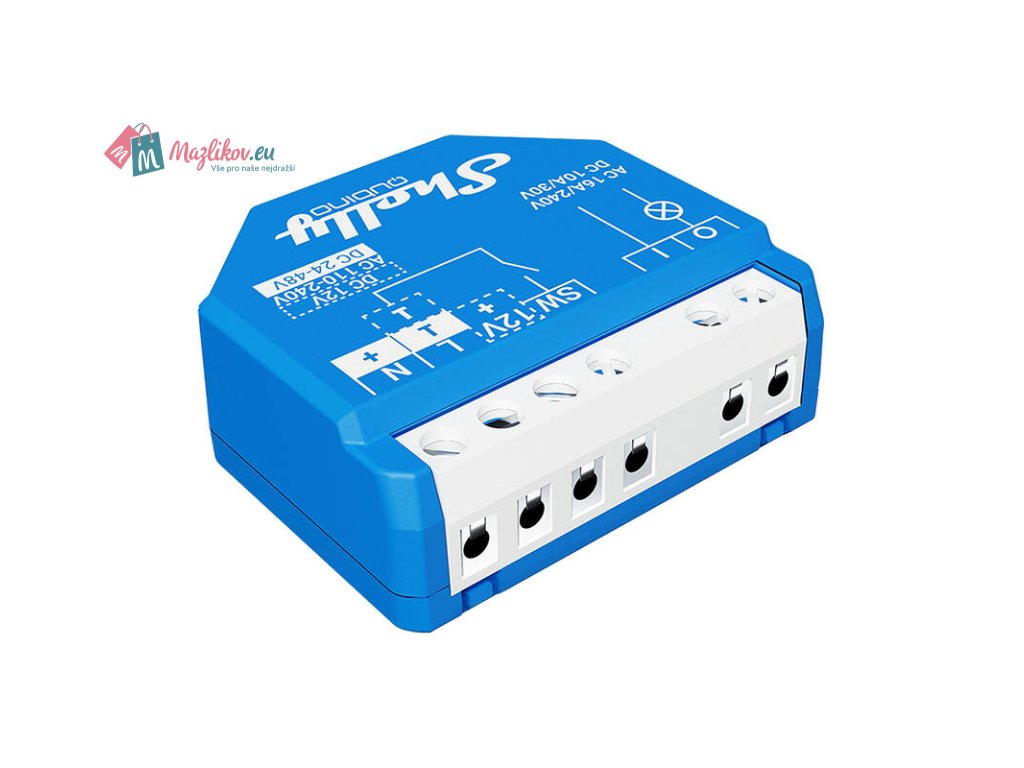

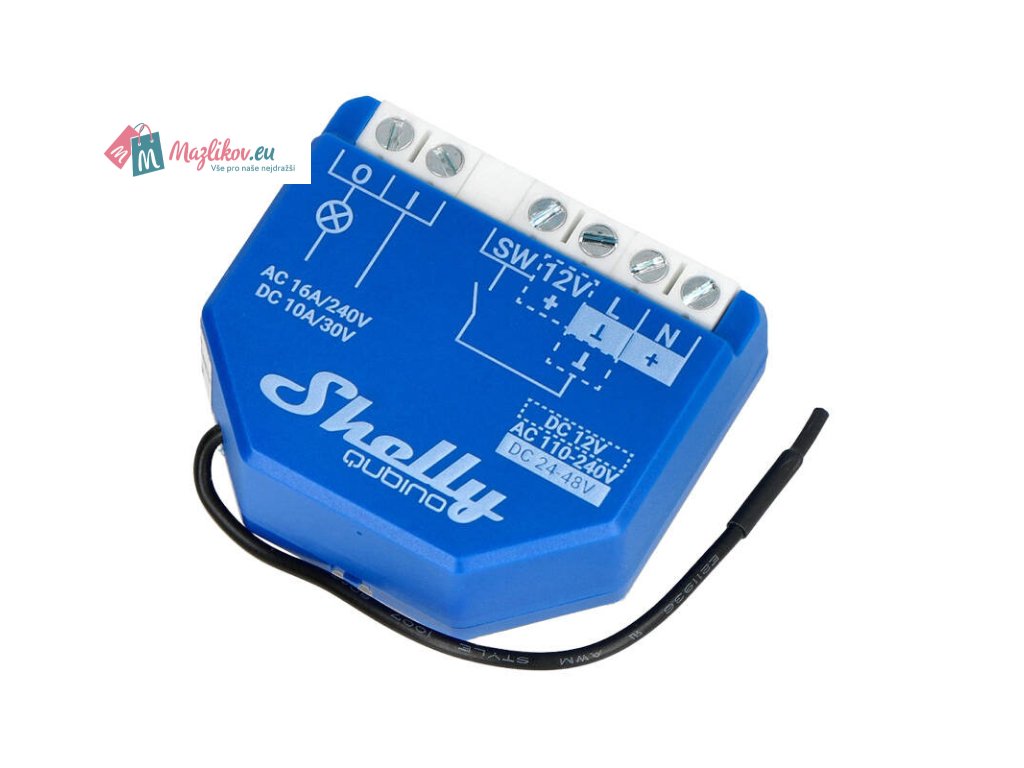

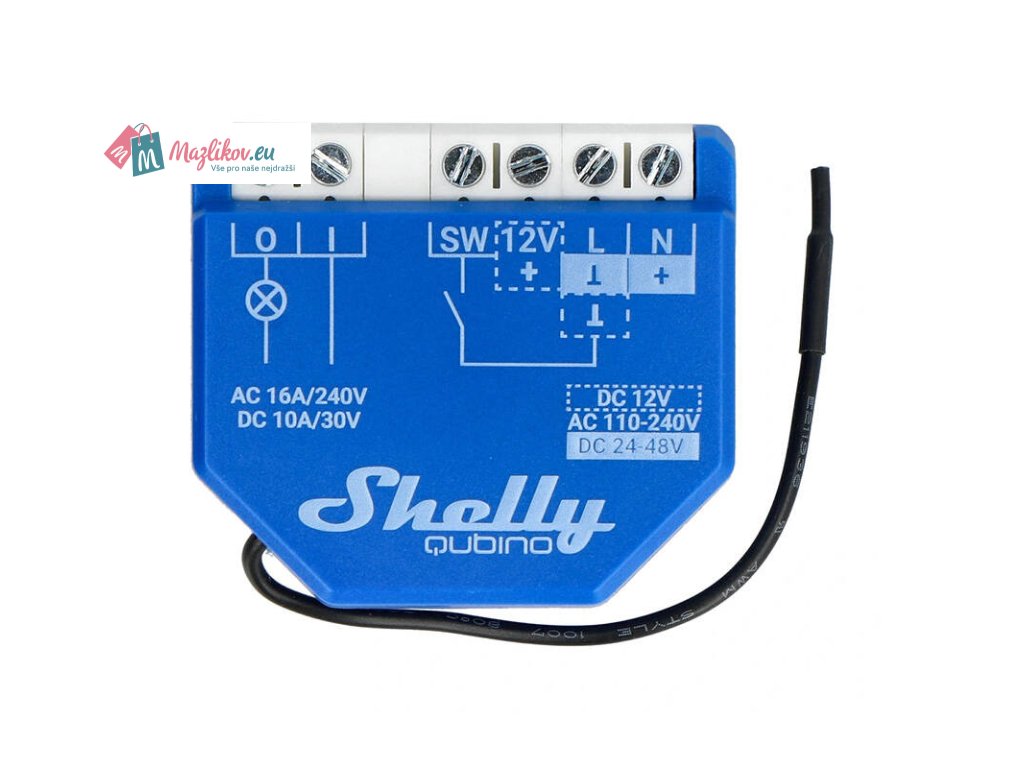

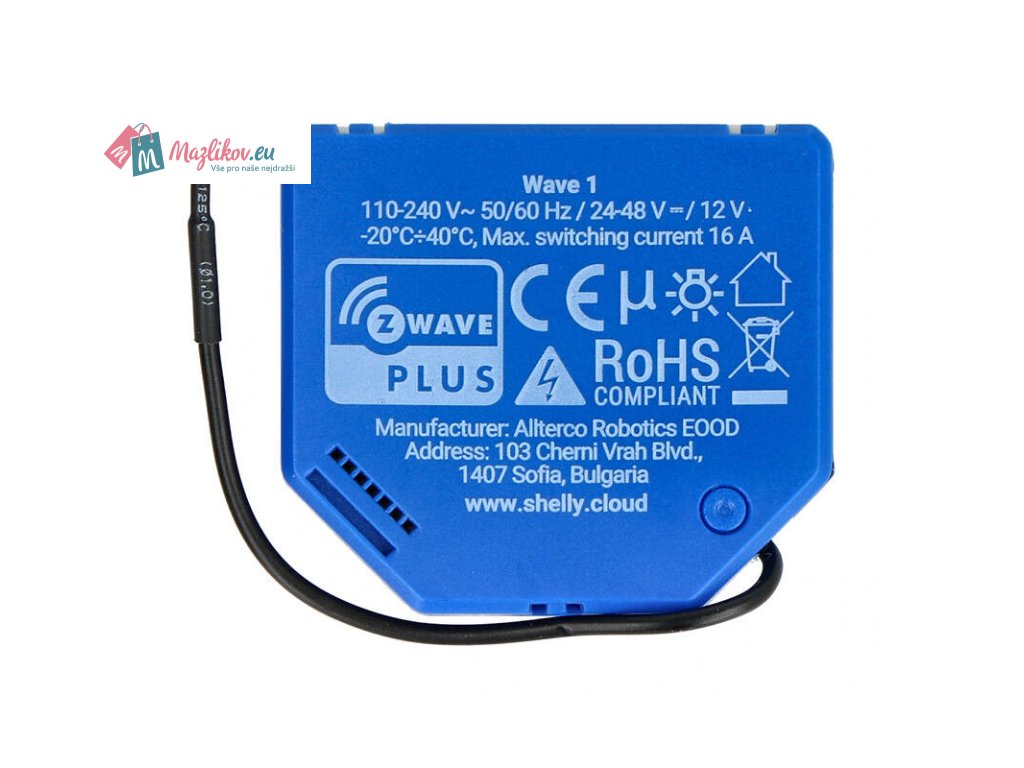

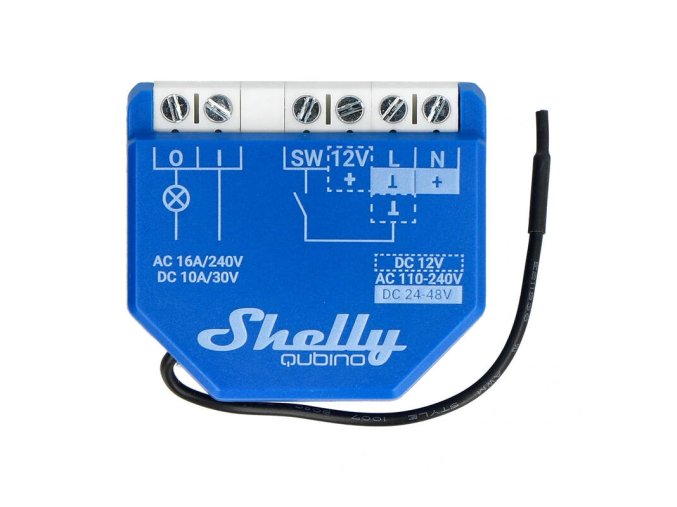

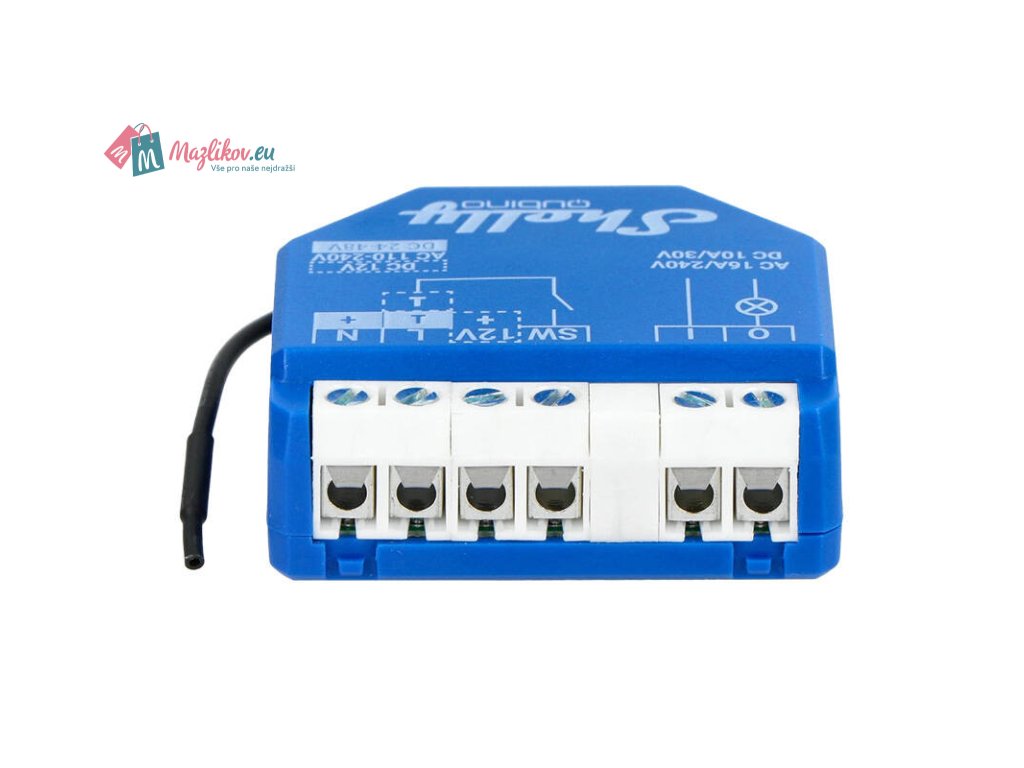

Shelly Qubino Wave 1 Controller
Shelly Qubino Wave 1 is a Z-Wave™ smart switch that allows remote control of various devices such as electric locks and lighting. It features voltage-free contacts and low power consumption, and operates in Z-Wave bands to ensure connection stability. Automation capabilities include control of lighting, electric locks and garden irrigation. It also provides security with AES128 encryption and is compatible with many other Z-Wave devices and gateways. Shelly Qubino Wave 1 is a solution for convenience and efficiency in smart home management.
Z-Wave compatibility
This controller is compatible with certified Z-Wave gateways and more than 4,000 other devices, allowing for easy integration into your existing smart home infrastructure. This allows you to remotely control and monitor your devices, giving you full control over the energy consumed by each one.
Customize your home to fit your schedule
With Shelly, you'll make every light switch smart! What's more, it will give you the ability to control them with your phone or voice assistant. Use the gateway to create automatic sleeps based on sunset/sunrise. You can set the lights to turn on when you get home from work or turn off when it's bedtime for the whole family. But don't worry - you can still use manual control to adjust the lights to your needs.
More options
That's not all, though! You can configure Wave 1 with other devices in your Z-Wave network, create links between them and enjoy gateway-free communication! This way you can, for example, automate your lock and door lights. Once you set up a rule, it can make the lights in the hallway/corridor turn on when the front door is unlocked. See for yourself how easy it is!
Helper in the garden and beyond
Keeping a beautiful lawn by the intensive mode of life can be troublesome, but Shelly is useful not only in the house, will also be an indispensable helper in the garden. Shelly helmsman Wave 1 you can use to irrigation system, thanks why you can manage it with your smartphone, even if you are on vacation. You can also set operating schedules for added convenience. Or maybe you can't remember if you closed the garage door? Now you can check it on your smartphone! Shelly Wave 1 shows an operating voltage of 12V DC 0 24-48V DC, so it will be ideal for controlling your garage door.
| Manufacturer | Shelly |
|---|---|
| Model | QubinoWave1 |
| Power supply | 110-240 V AC / 24-48 V DC / 12 V DC ± 10% |
| Power consumption | < 0.3 W |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 16 A |
| Max. switching voltage DC | 30 V |
| Max. DC switching current | 10 A |
| Protection against overheating | Yes |
| Distance | Up to 40 m indoors (131 feet) (depending on local conditions) |
| Z-Wave™ repeater | Yes |
| Processor | Z-Wave™ S800 |
| Z-Wave™ frequency bands | 868.4 MHz; 865.2 MHz; 869.0 MHz; 921.4 MHz; 908.4 MHz; 916 MHz; 919.8 MHz; 922.5 MHz; 919.7-921.7-923.7 MHz; 868.1 MHz; 920.9 MHz |
| Maximum radio frequency power transmitted in the frequency bands | < 25 mW |
| Size (H x W x D). | 37x42x16 ±0.5 mm |
| Weight | 26 g |
| Mounting: | wall console |
| Screw terminals max. torque | 0.4 Nm |
| Cable cross section | 0.5 to 1.5 mm² |
| Cable length without insulation | 5 to 6 mm |
| Sheath material | plastic |
| Color | blue |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% relative humidity |
| Max altitude | 2000 m |
