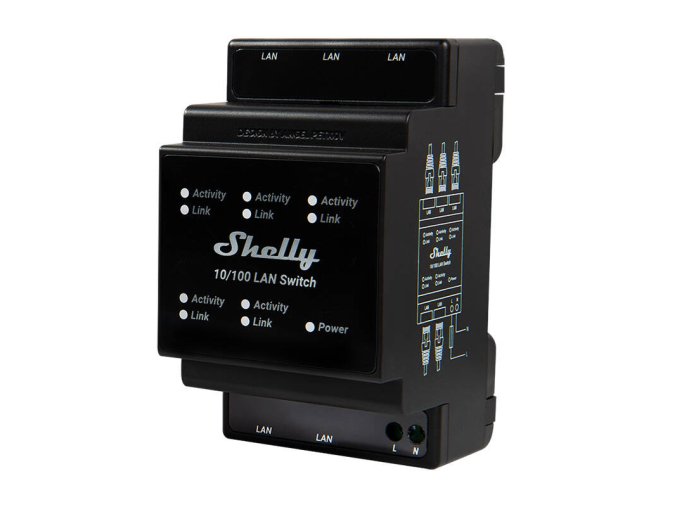

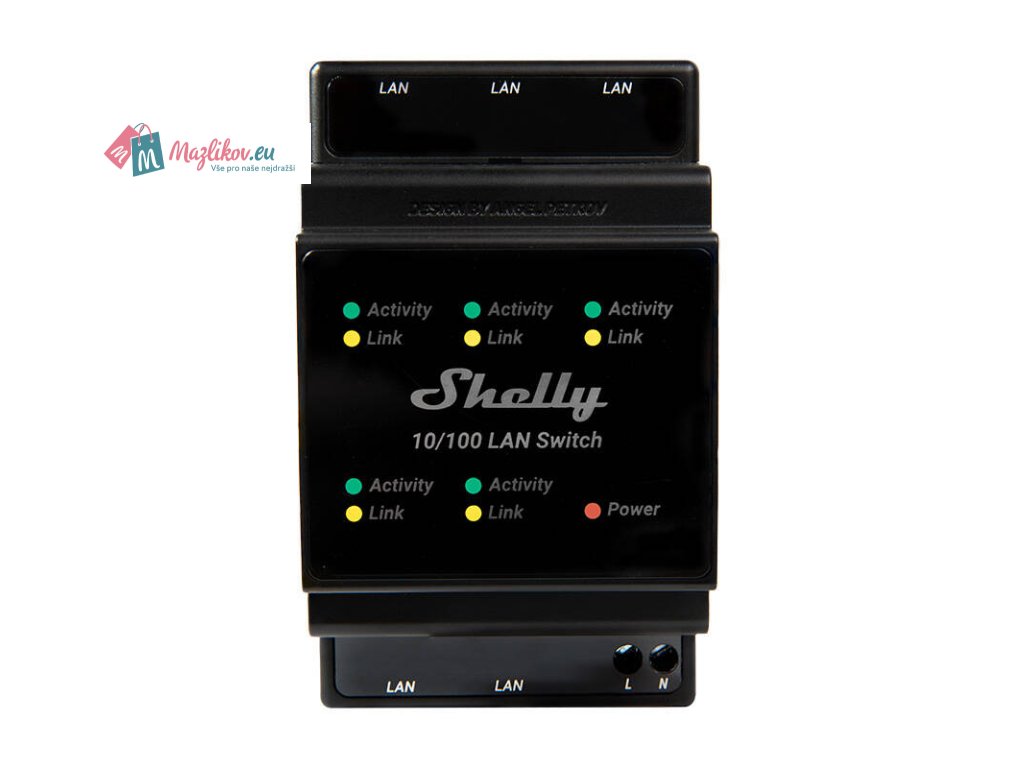

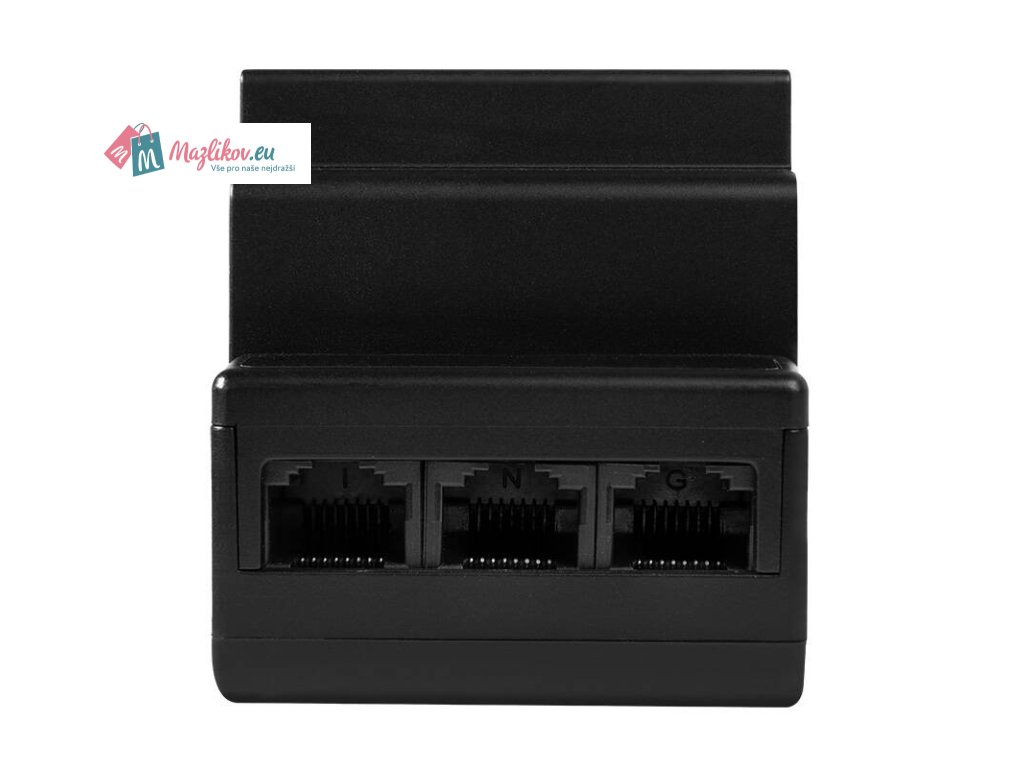

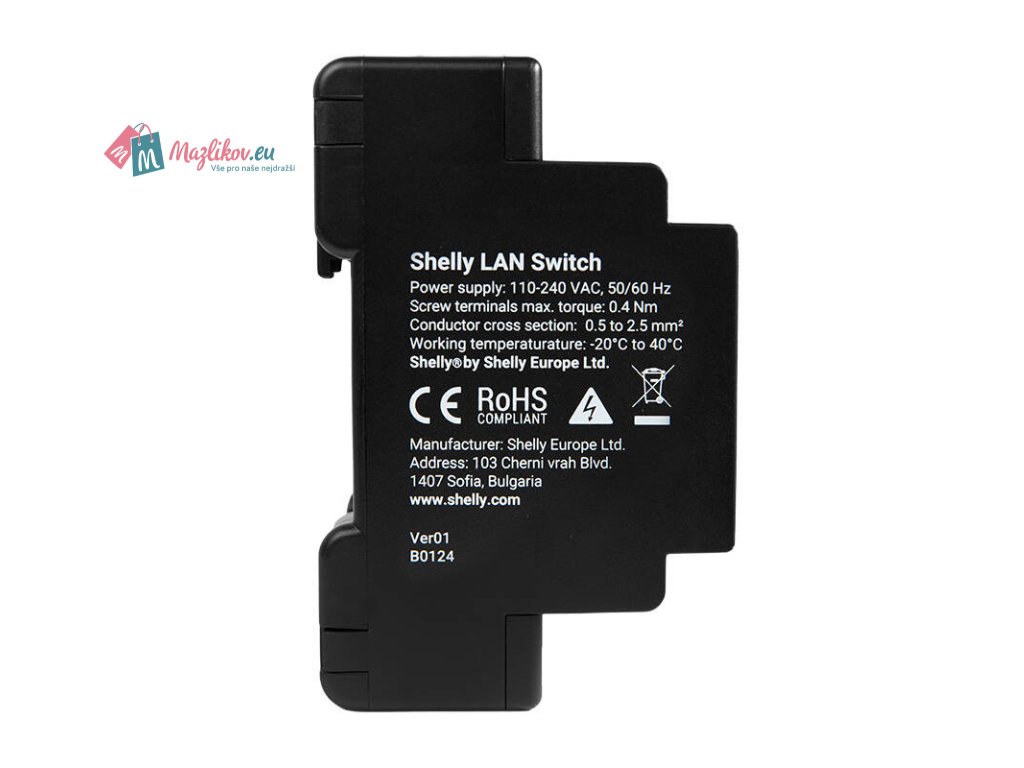

Ethernet Switch with 5 RJ45 ports Shelly LAN Switch
The Shelly LAN Switch Ethernet Switch is designed to provide an efficient and stable network connection for a variety of devices. With five RJ45 ports, the device allows seamless communication between multiple devices at the same time, which is crucial in modern homes and offices. Mounted on a DIN rail, the Shelly LAN Switch is an ideal solution for those who appreciate order and efficiency in managing their network infrastructure.
Construction and technical parameters
The switch features compact dimensions of 96 × 53 × 59 mm and a weight of 87 g, which makes it easy to install in standard electrical boxes. The high-quality plastic housing provides not only an aesthetic appearance, but also resistance to typical operating conditions. The device is suitable for temperatures from -20°C to 40°C and relative humidity from 30% to 70%, which allows its use in a variety of environments.
Functionality and application
Shelly LAN Switch offers not only basic Ethernet switch functionality, but also advanced technical solutions to optimize and simplify network infrastructure. The device provides a reliable connection even under demanding conditions, which is crucial for maintaining the continuous operation of smart home systems such as lighting and HVAC systems. In addition, with simple integration with photovoltaic systems, the Shelly LAN Switch enables efficient monitoring and management of energy production and consumption.
Ease of installation
Designed to fit seamlessly into existing switch box configurations, the Shelly LAN Switch eliminates the need for complex wiring while offering high stability and connection reliability. Working with Shelly's Pro line of devices, the switch simplifies installation and allows you to maintain an organized and aesthetically pleasing network system configuration. As a result, even without planning space for network devices in advance, it is possible to quickly and efficiently expand the infrastructure without the need for rewiring.
| Manufacturer | Shelly |
|---|---|
| Model | LANSwitch |
| Size (H x W x D). | 96 × 53 × 59 mm / 3.78 x 2.01 x 2.32 inches |
| Weight | 87 g |
| Screw terminals maximum torque | 0.4 Nm / 3.5 lbs. |
| Cable cross section | 0.5 to 2.5 mm² / 20 to 14 AWG |
| Wire length without insulation | 6 to 7 mm / 0.24 to 0.28 inches |
| Mounting | DIN rail |
| Sheath material | Plastic |
| Coating color | Black |
| Ambient temperature during operation | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% relative humidity |
| Max altitude | 2000 m / 6562 ft |
| Power supply | 110-240 V AC |
| Power consumption | < 1 W |
| External protection | Tripping characteristic B or C, max. 16A max. current rating, min. Interruption rating 6 kA, energy limitation class 3 |
